Courtesy of Jim Bush

The diagrams I've put online are ONLY FOR THE RS2 (H1/H1) HEADLAMP SETUP. USE AT YOUR OWN RISK.

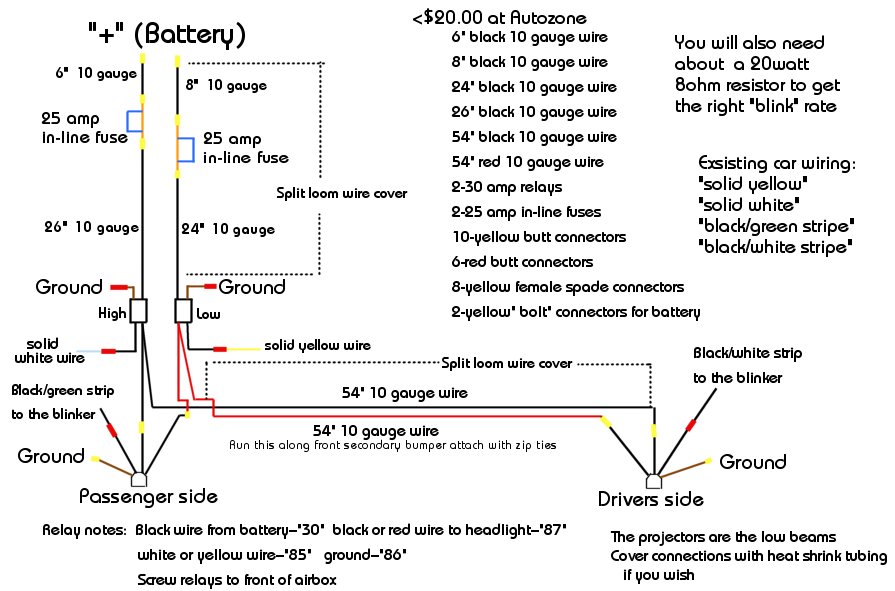

Wiring Harness Schematic 1

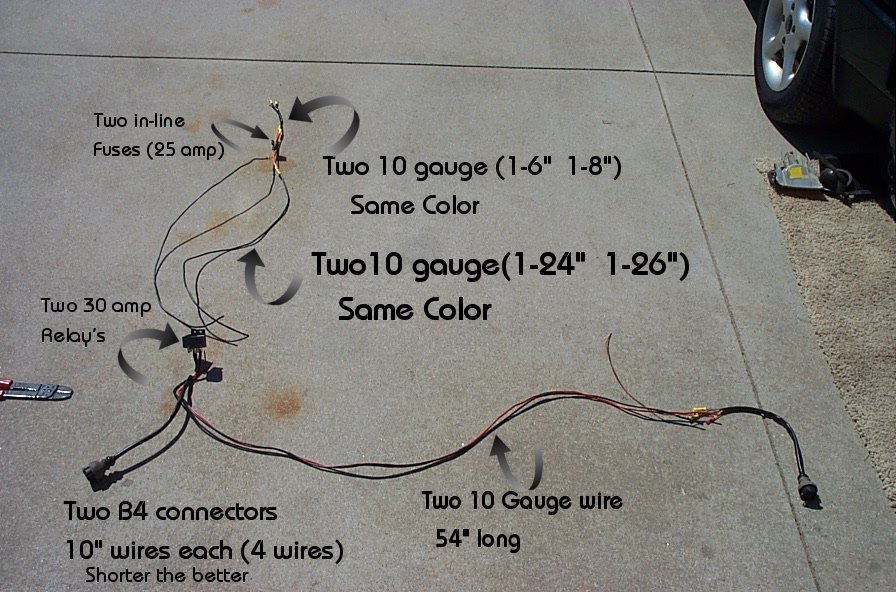

Wiring Harness Schematic 2

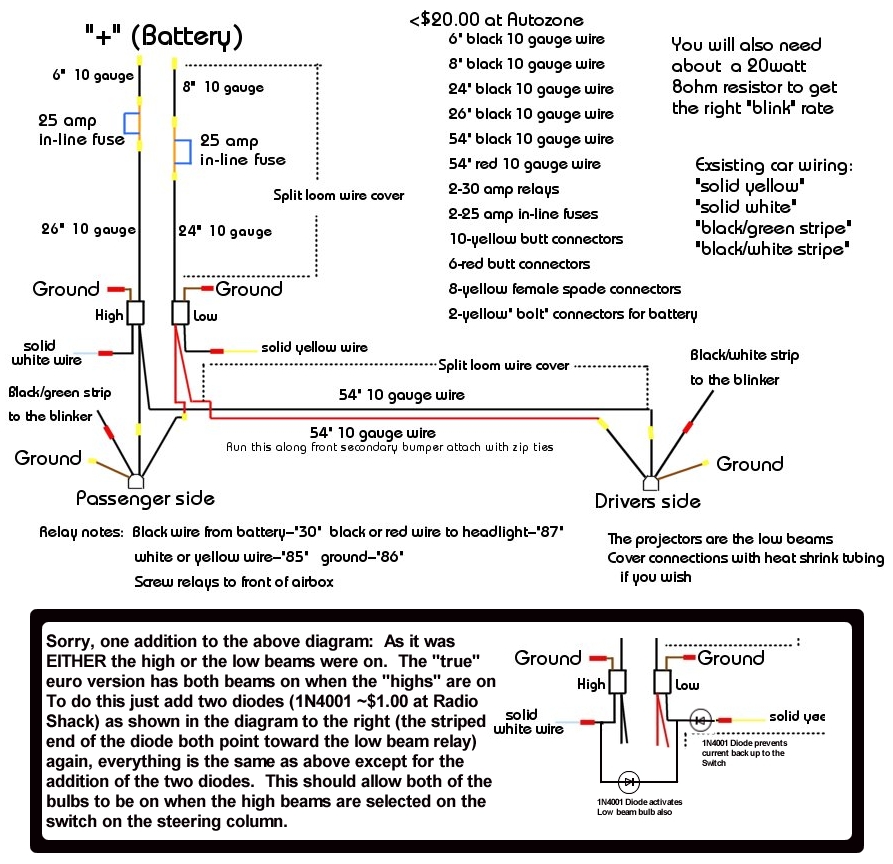

UPDATED Wiring Harness Schematic!
